Gravity Pond Filter

The OASE BioSmart gravity filters are packed with features and filtration capacity. The high-surface area filter foams provide exceptional biological filtration capability with respect to size of the filter.

Features

• Distinct cleaning zones
• Built-in cleaning mechanisms
• Cleaning indicator
• Temperature gauge
• 3-Year Limited Warranty

How Much Water will these Filters Clean?

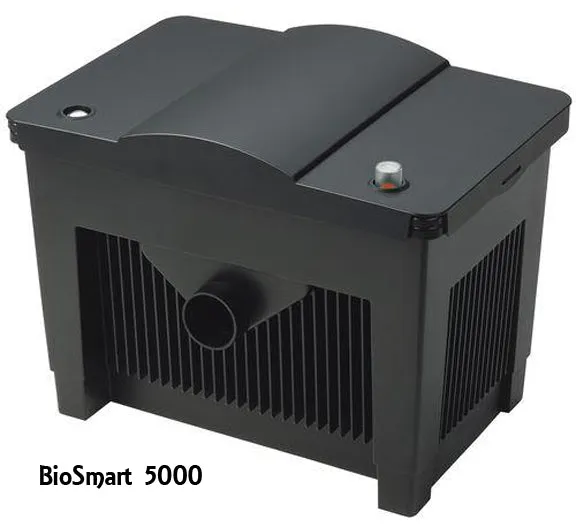

BioSmart™ 5000

Max. Rec. Flow Rate: 1900 gph
Min. Rec. Flow Rate: 1000 gph
Tubing Connector (intake): 3/4 in., 1 in., 1 1/4 in., 1 1/2 in.
Outlet Connection: 2 1/2 in.
Sludge Drain Connection: 2 in.

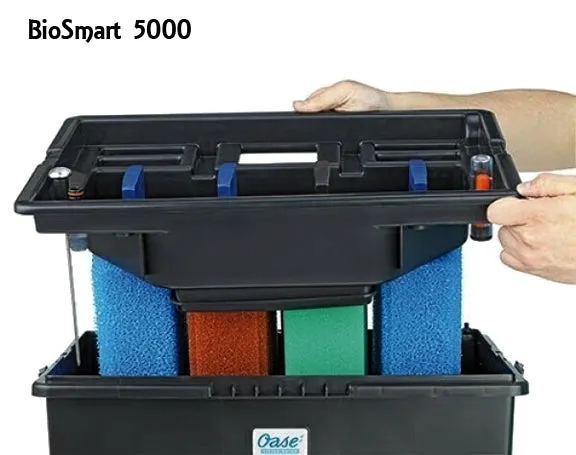

Filter Foams: 4 (1 x Red, 2 x Blue, 1 x Green)
Dimensions (L x W x H): 22 x 22 x 16 in.

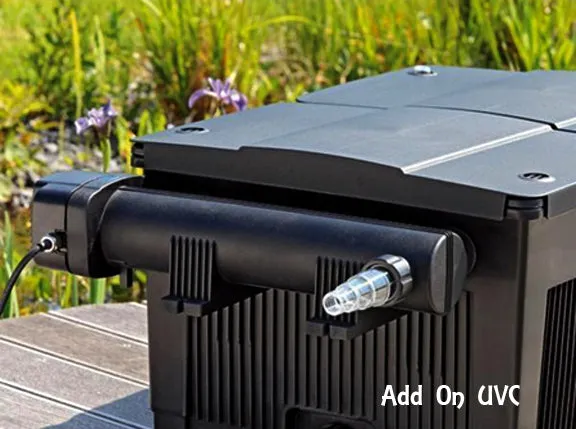

For Optional UV Clarifier add the
Replacement

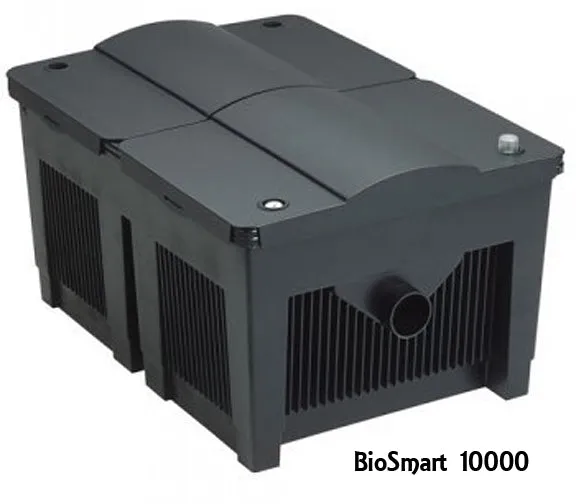

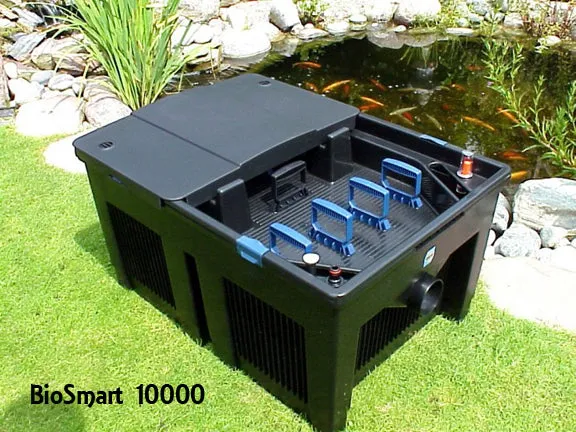

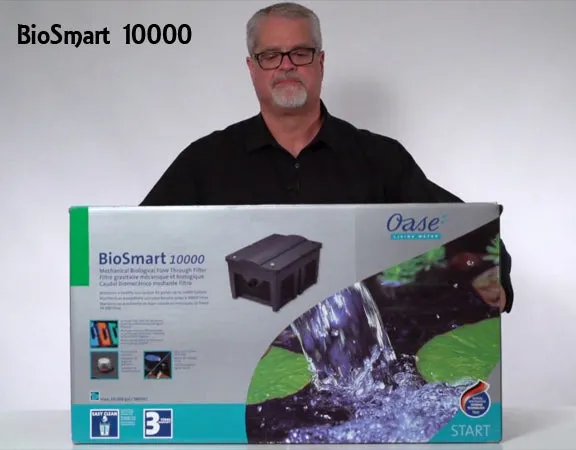

BioSmart™ 10000

Max. Rec. Flow Rate: 3600 gph
Min. Rec. Flow Rate: 1600 gph
Intake Connection: 1 1/2 in. threaded female (2 x)
Tubing Connector (intake): 3/4 in, 1 in., 1 1/4 in., 1 1/2 in.
Outlet Connection: 2.5 in. (via Adapter Ring)
Sludge Drain Connection: 2 in.

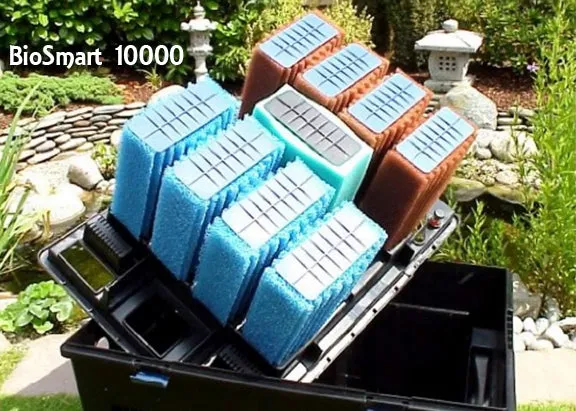

Filter Foams: 9 (4 x Red, 4 x Blue, 1 x Green)
Dimensions (L x W x H): 30 x 22 x 16 in.
For Optional UV Clarifier add the
Replacement

Further Information

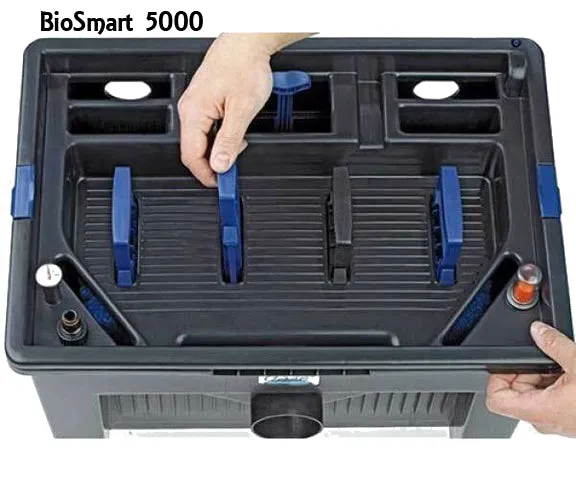

No need to remove or manually unclog the filter foams of the BioSmart filters. Simply shut off your pump, pull on the built-in cleaning handles and drain the sludge through the built-in drain. Quick to do; and this retains the beneficial bacteria that keep the filter working.

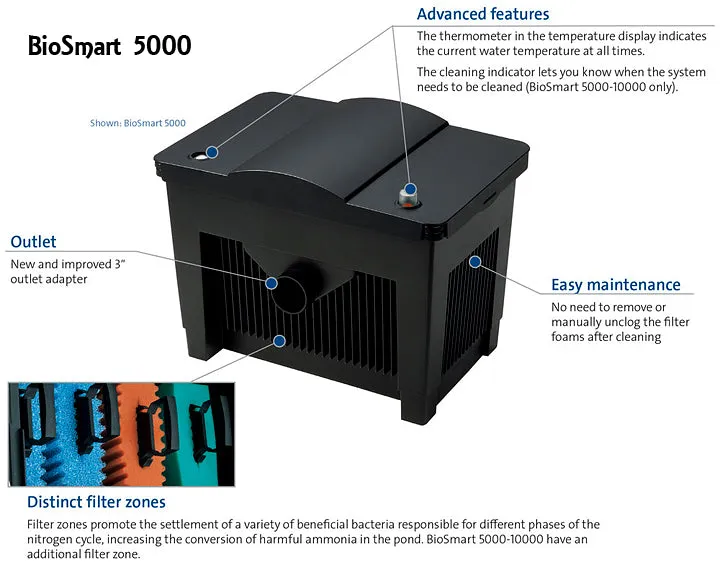

BioSmart filters feature distinct zones that promote the settlement of the beneficial bacteria responsible for different phases of the nitrogen cycle, increasing the conversion of harmful ammonia in the pond.

The cleaning indicator, along with the temperature gauge and sludge drain are just some of the features that make BioSmart the most user-friendly and easy to maintain entry-level pond filter.

Replacement Parts

ASE BioSmart Replacement Foam Holders
